Key Benefits
Lightest poles across the full range of length and tip loads
Impervious to insects and rot
Non-combustible with proven bush fire performance
Tapered design enables self-cleaning during rainfall
Fully recyclable
Self-bonding
PLS Pole data available
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
Available Foundation Types
Direct Embedment
Anchor Bolt/Base Plate
Vibratory Steel Caisson
Standard Features of in-ground and base plate mounted
In-Ground Mounted:
12-sided pole shaft
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the nominal ground line
M24 nut 250mm above the nominal ground line (to assist lifting)
Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line
Anti-sink straps
Hot dip galvanised finish
Base Plate Mounted:
12-sided pole shaft (40kN to 80kN)
16-sided pole shaft (100kN & 120kN)
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the pole base
Two lifting gussets on the base plate
Anchor bolts, templates, nuts & washers
Hot dip galvanised finish
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
More Pictures

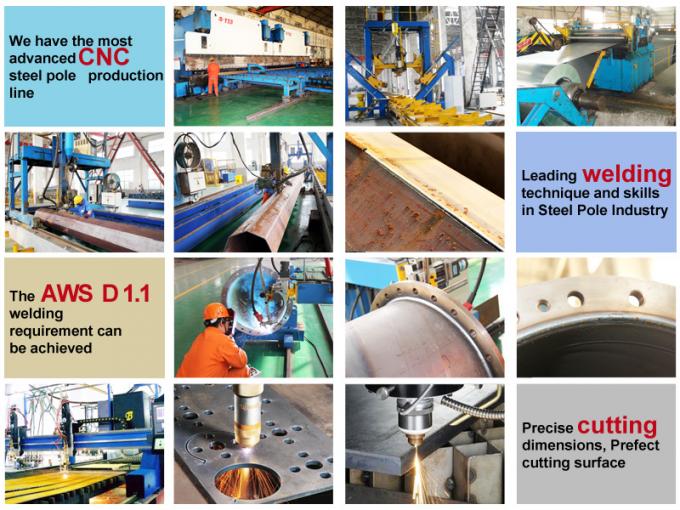

Workshop
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
