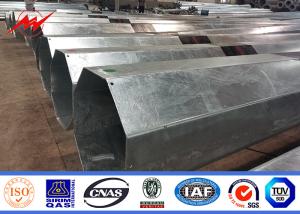

16m 1800 Dan Galvanized Steel Tubular Pole For Distribution Line Project

Brand Name : milky way

Model Number : 69KV

Certification : ISO9001:2015

Place of Origin : JIANGSU,CHINA

MOQ : ONE CONTAINER

Price : USD 130-180POLE

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000POLES/MOUTH

Delivery Time : ALWAYS 20DAYS

Packaging Details : The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo

MATERIAL : S355JR

APPLICATION : ELECTRICITY DISTRIBUTION

THICKNESS : 2.5-10MM

SHAPE : POLYGON

GALVANIZATION : ASTM A123,average coationg not less than 85um

WELDING : AWS D1.1,penetration 100%

LIFETIME : 50 YEARS

WIND SPEED : 160KM/H

ULTIMATE TENSILE STRENGTH : 490-620MPA

Contact Now

Steel


The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

16m 1800 Dan Galvanized Steel Tubular Pole For Distribution Line Project

Specifications:

Suit for Communication distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimension +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg applied to 50cm from the to pole
Marks

Name plate through rivert or glue ,engrave ,emboss

as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,inner flange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

16m 1800 Dan Galvanized Steel Tubular Pole For Distribution Line Project

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
