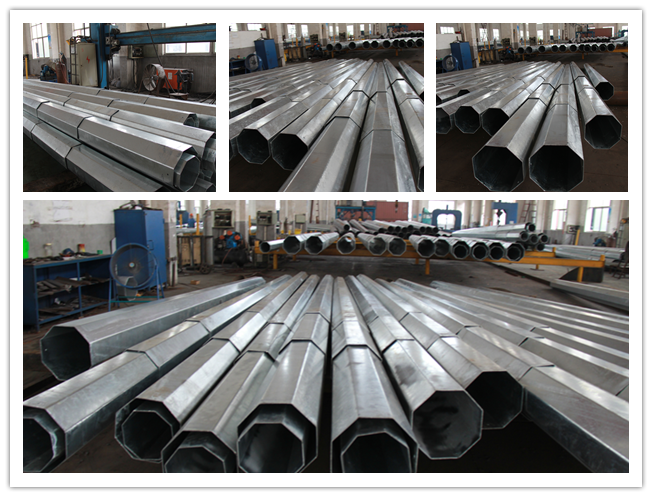

35 ft 3 mm NEA Galvanized Electrical Power Pole For Electrical Fitting Line
Production
Our steel pole is bent to form to the polygonal (conical) section firstly. Then it is welded by the automatic
submerged-arc. Then it is welded by the automatic submerged-arc welding machine.
Thirdly the top cap, strip and base plate will be welded to the pole. And finally other accessories (support brackets,
ladder support, etc.) will be welded to the pole shaft.
Galvanization
The galvanization of the steel pole are under strict control. Galvanization is achieved by immersion in a molten
zinc bath(450̊) after pre-treated (dipping).
Manufacturer Tolerance
- Component Length: -25mm to 75mm
- Straightness: 2mm/m
- Twisting degree: 1̊ per 3 meters length
- Ovalisation : Maximum is 3%
- The average diameter : +/-0.5%
-Slip length: +/-150mm
Standard Accessory
- Top plate
- Base plate
- Bottom Strip
- Standard Hole
- Climbing Rung
- Anchor bolt
- Bitumen Protection
- Painted Marking
- Removable Ladder
The information to inquiry or purchase
- Steel pole height and force
- Cross arm type and length, the position to install in the steel pole
- The method to fix the cross arm (use Bolt to connect or use one or two template to weld in the steel pole to
install the cross arm)
- Safety factor of the steel pole
- Wind speed
- Type of climbing rung
- Destination port
- Others
Factory
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on
