12meter Iso Certificate Hot Dip Galvanization Double Arm Street Light Pole

Brand Name : milky way

Model Number : 69KV

Certification : ISO9001:2015

Place of Origin : JIANGSU,CHINA

MOQ : ONE CONTAINER

Price : USD 130-180POLE

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000POLES/MOUTH

Delivery Time : ALWAYS 20DAYS

Packaging Details : The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo

MATERIAL : S355JR

APPLICATION : electricity distribution

THICKNESS : 2.5-10MM

SHAPE : POLYGON

GALVANIZATION : ASTM A123,average coationg not less than 85um

WELDING : AWS D1.1,penetration 100%

LIFETIME : 50 YEARS

WIND SPEED : 160KM/H

ULTIMATE TENSILE STRENGTH : 490-620MPA

Contact Now

pecification:

1. Quality Q345/Q235 steel plate
2. advanced equipent
3. high level technical personnel
4. hot dip galvanization

Drawings:

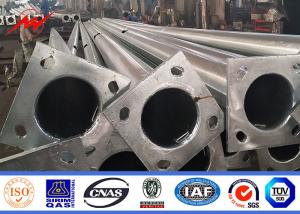

12meter Iso Certificate Hot Dip Galvanization Double Arm Street Light Pole

Type Street Lamp pole, lamp post . Lamp column
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion -0.02
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section Within 14m once forming without slip joint.
Suit for Highway
Roadway
Residential subdivisions
Commercial development
Option Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.
Production Process

Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding

→Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread

→Packages

12meter Iso Certificate Hot Dip Galvanization Double Arm Street Light Pole
